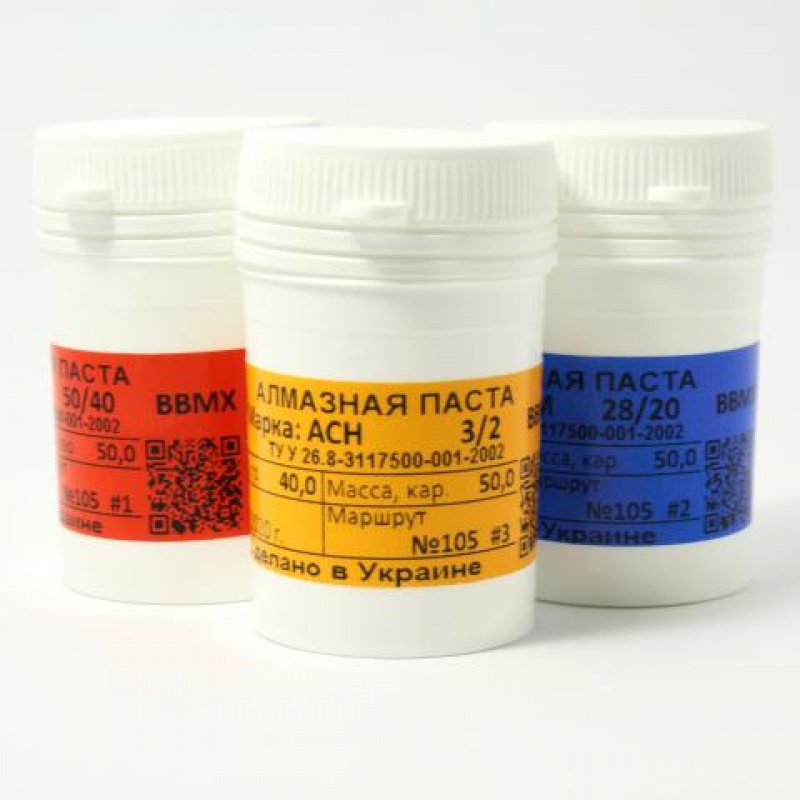

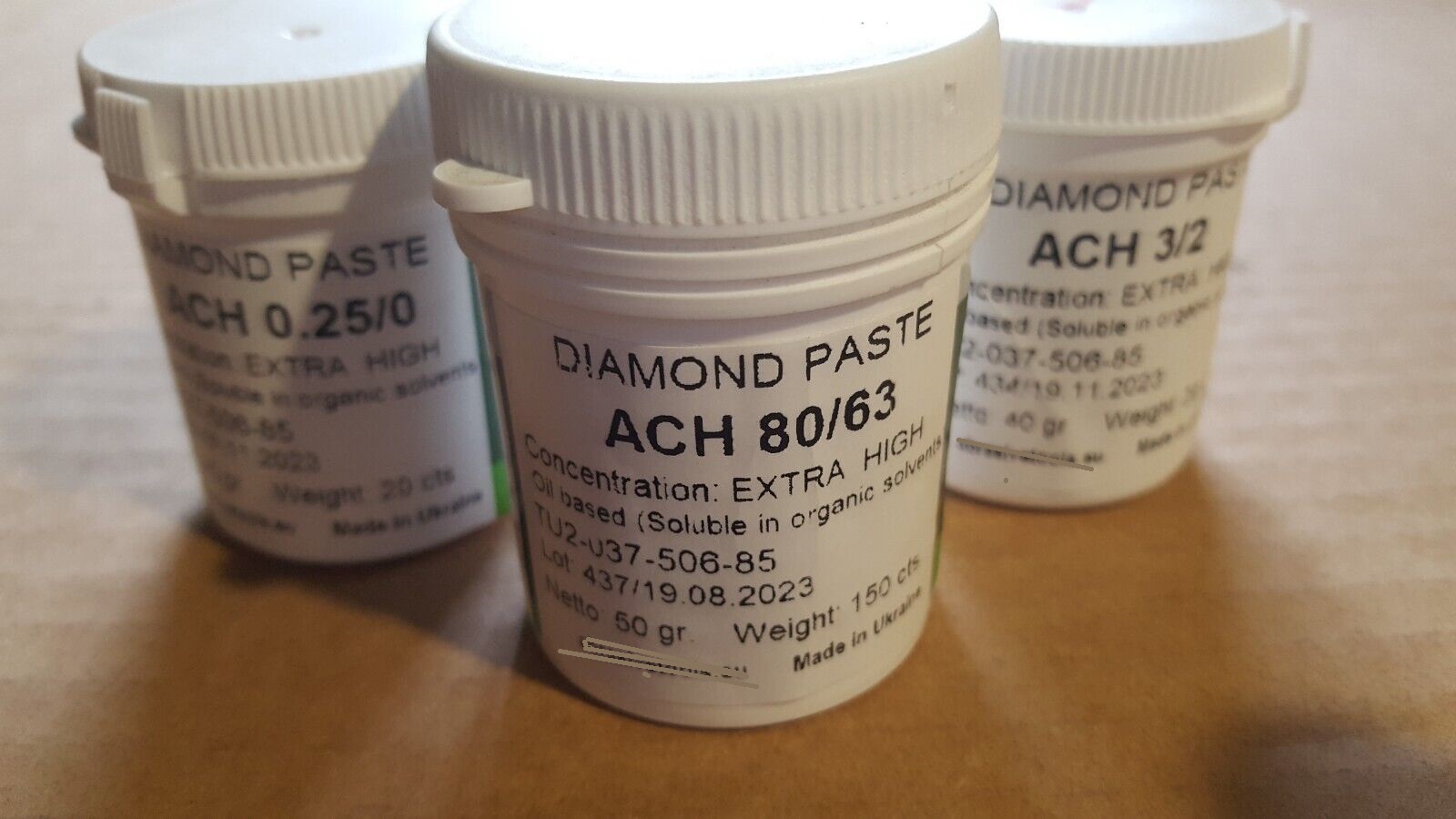

DIAMOND POLISHING, LAPPING PASTE, EXTRA HIGH CONCENTRATION
Weight: 40 gr.
Oil based (Soluble in organic solvents): for polishing of ferrous and non-ferrous metals, alloys, non-metal materials, steels and semiconducting materials. We also make water based diamond pastes: for polishing of glass, semiconducting materials, carbide tools, dyes, sapphire.
Grain size: Please select from the list
Diamond concentration: EXTRA HIGH, please review the difference between concentrations below, EXTRA HIGH is the highest standard concentration of diamond paste, although we make pastes with higher concentration (Super high) for specific applications.
Diamond weight per 40 gr., cts
| 60/40 | 80 |
| 40/28 | 80 |
| 28/20 | 60 |
| 20/14 | 60 |
| 14/10 | 60 |
| 10/7 | 40 |
| 7/5 | 40 |
| 5/3 | 40 |
| 3/2 | 20 |
| 2/1 | 20 |
| 1/0 | 20 |
| 0,5/0 | 20 |
| 0,25/0 | 20 |
| 0,1/0 | 20 |
Surface roughness after polishing
| Grain size, µm | Surface roughness Ra, µm | Processing | |
| before | after | ||
| 125/100 – 50/40 | – | 0,32 | grinding, fine grinding |
| 60/40-40/28 | 0,4 – 0,2 | 0,195 – 0,155 | fine grinding |
| 28/20 – 14/10 | 0,16 – 0,1 | 0,12 – 0,075 | polishing |
| 10/7 – 5/3 | 0,08 – 0,05 | 0,06 – 0,038 | polishing |
| 3/2 – 1/0 | 0,04 – 0,025 | 0,03 – 0,02 | fine polishing |
| 0,5/0 – 0,1/0 | – | – | fine polishing |
Available on stock
We make any type of diamond pastes and supply products according to customer requirements, which include: base compound (water, oil), packaging, color, concentrations. Please note, some products are impossible to make, for example, maximum concentration of 0.5/0 paste is 15% by weight.
Application
Finishing and polishing of stone (granite, marble), metal, glass.
30000 grit = 0.5/0 μ – fine polishing
15000 grit = 1/0 μ – fine polishing
10000 grit = 2/1 μ – fine polishing
5000 grit = 3/2 μ – fine polishing
4000 grit = 5/3 μ – polishing
3000 grit = 7/5 μ – polishing
1700 grit = 10/7 μ – polishing
1500 grit = 14/10 μ – polishing
1100 grit = 20/14 μ – polishing
650 grit = 28/20 μ – polishing
550 grit = 40/28 μ – fine grinding
325 grit = 50/40 μ – fine grinding
