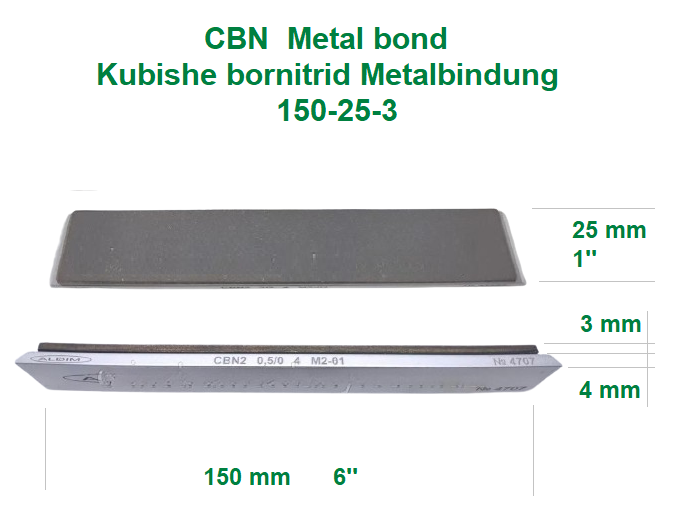

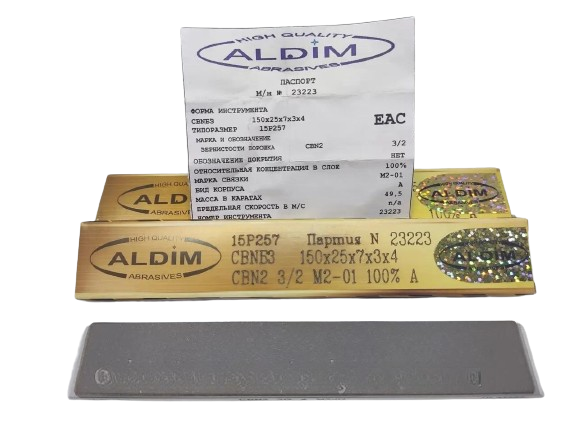

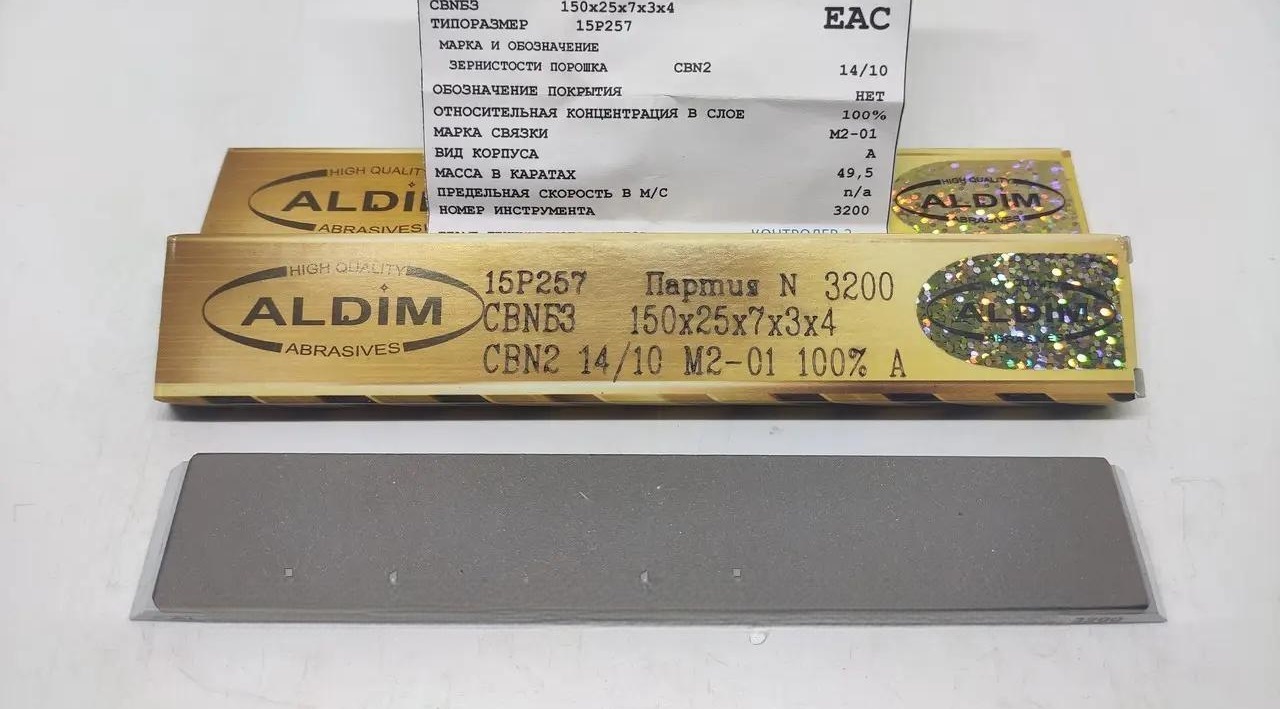

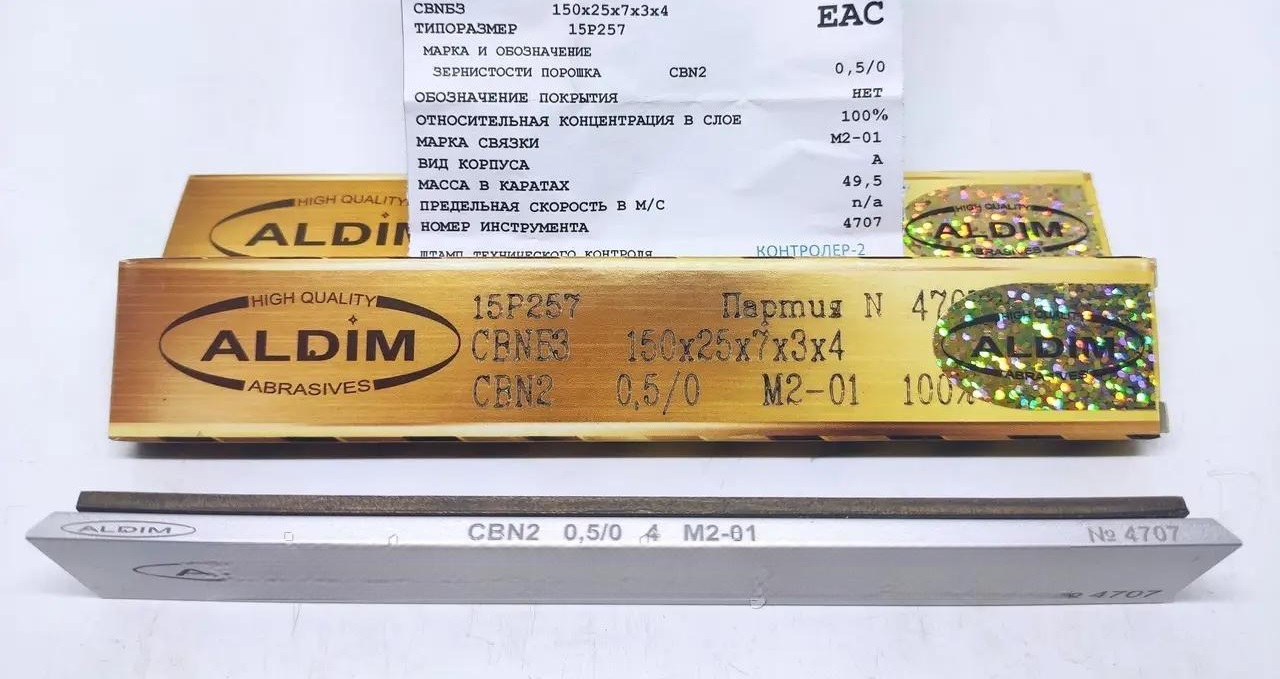

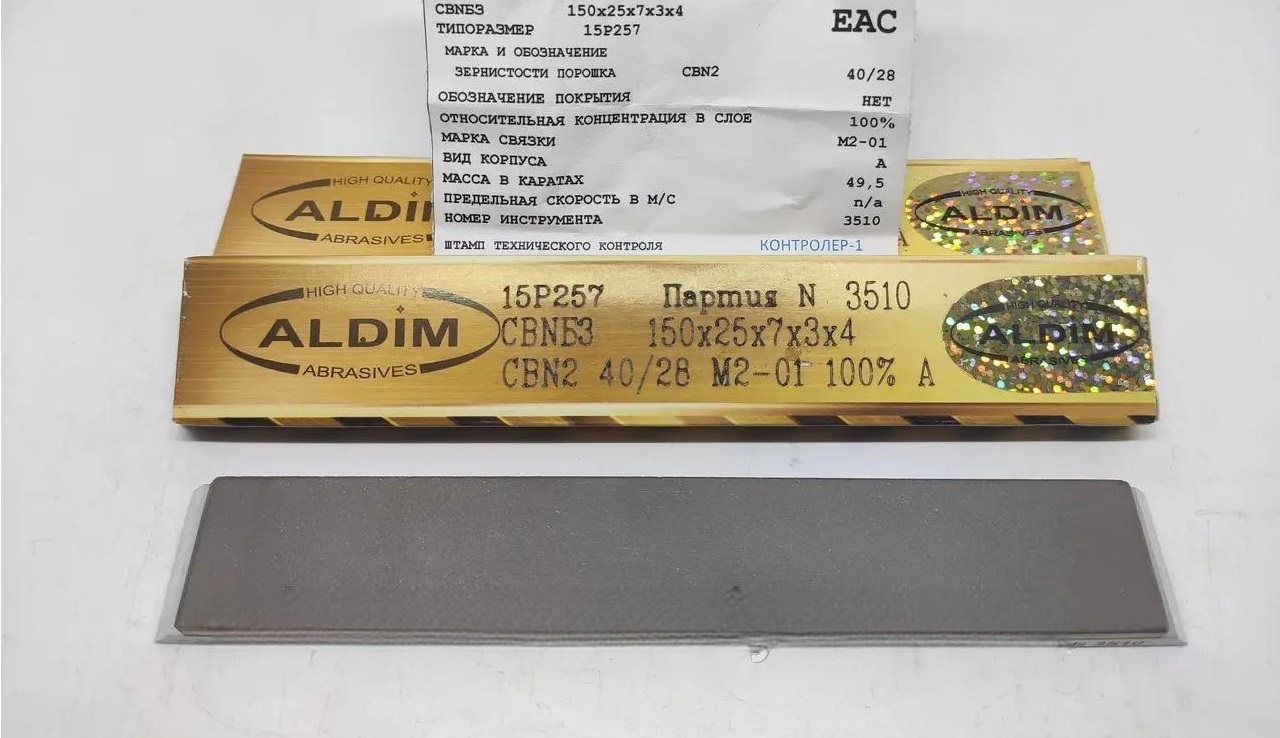

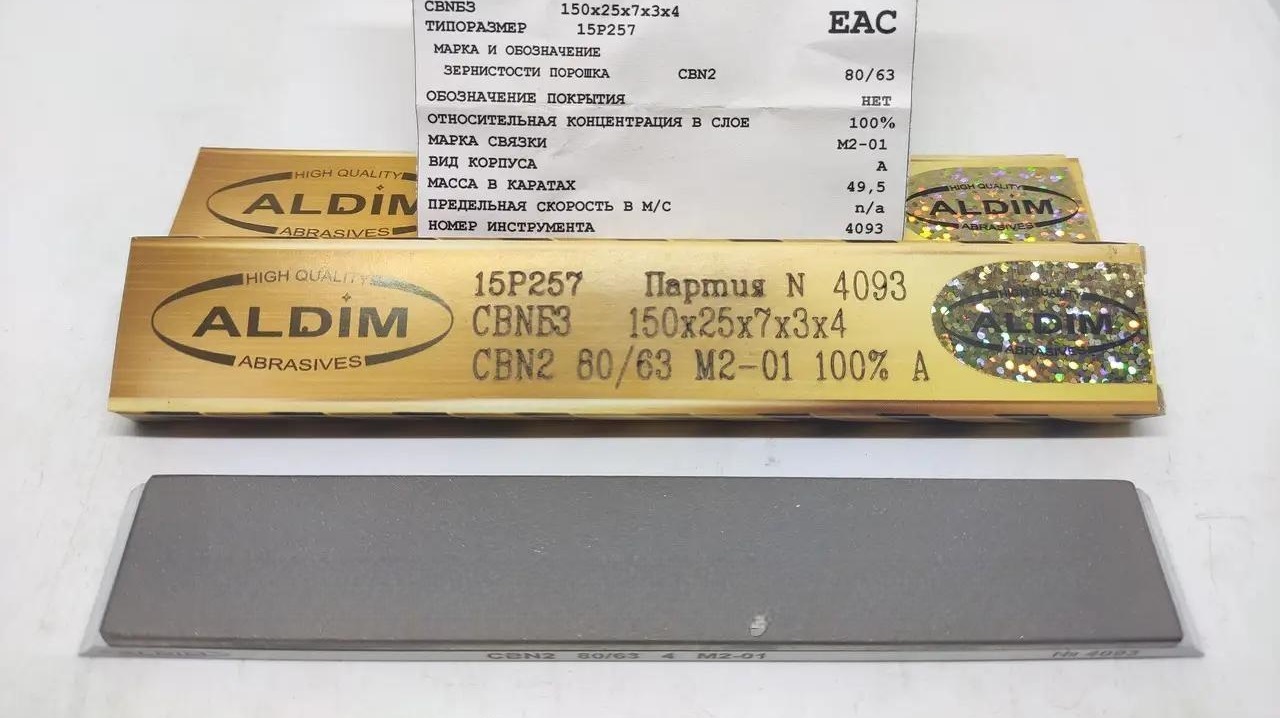

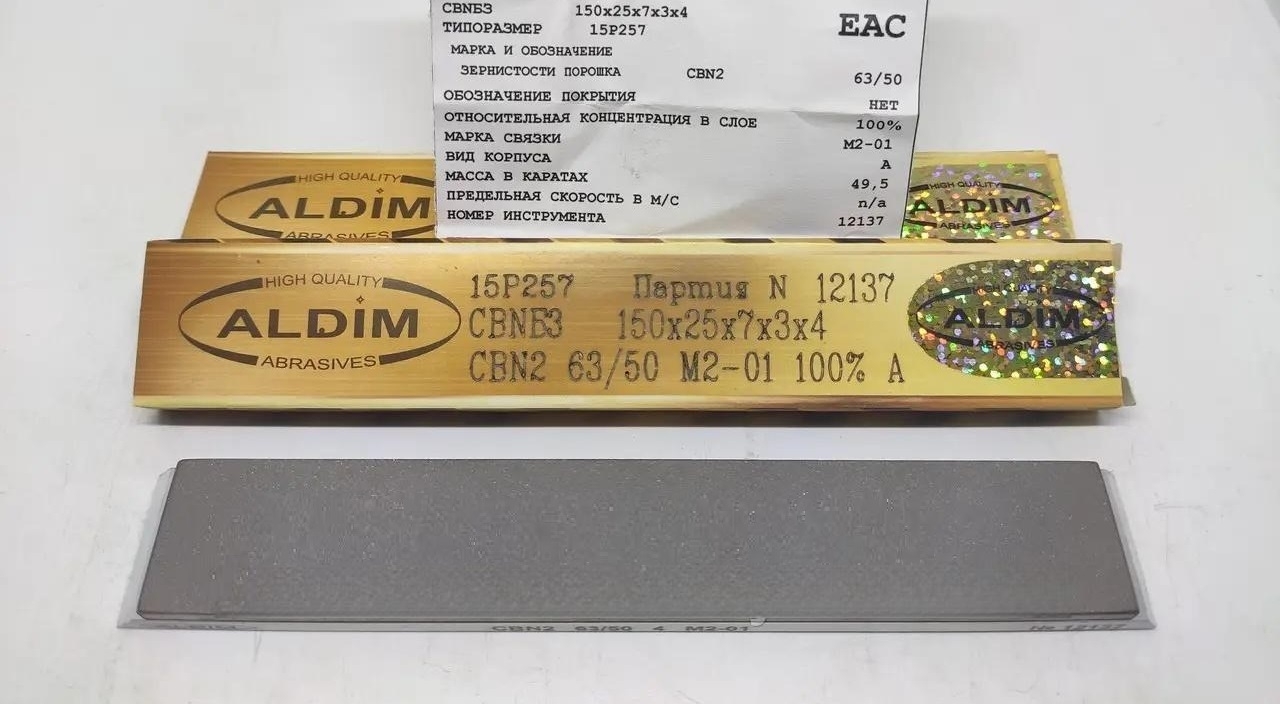

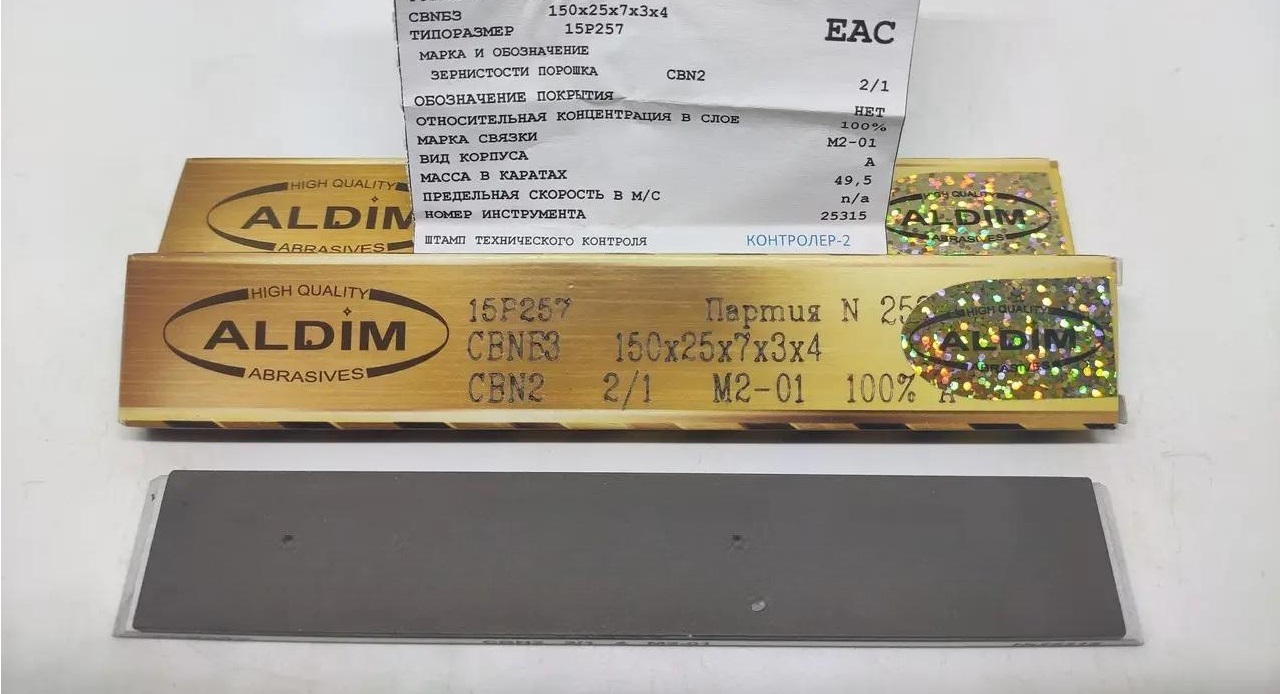

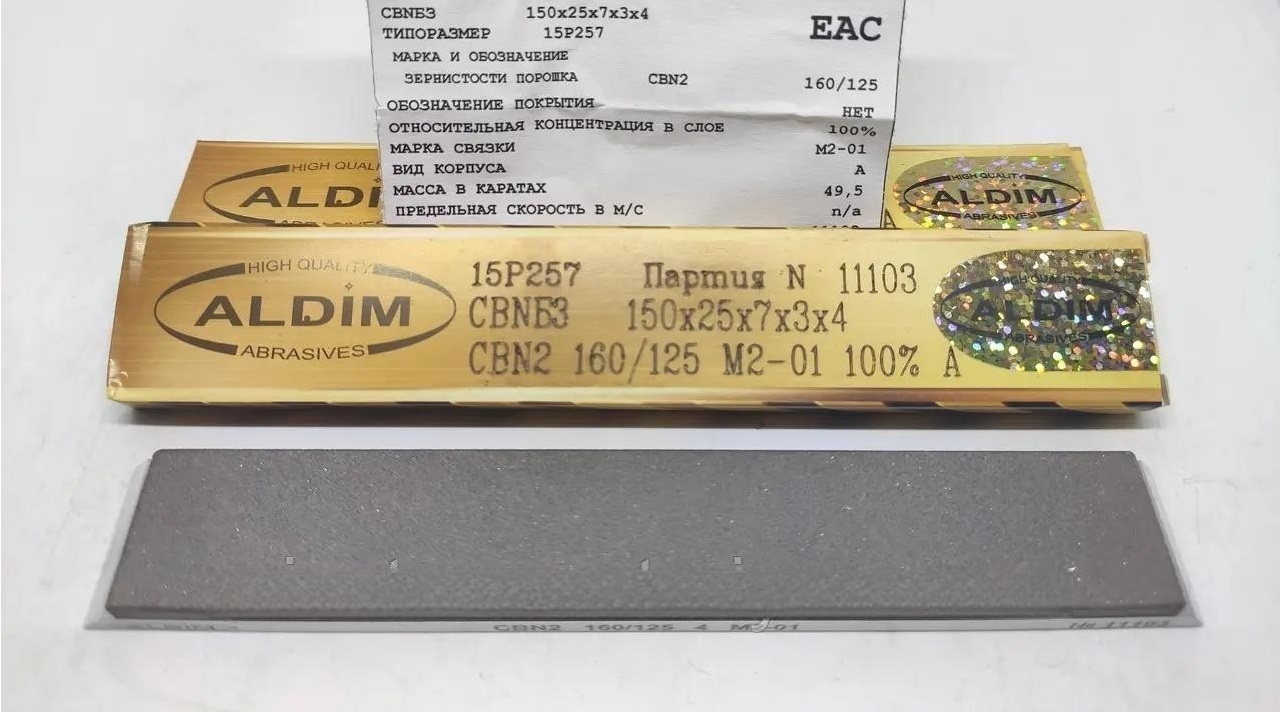

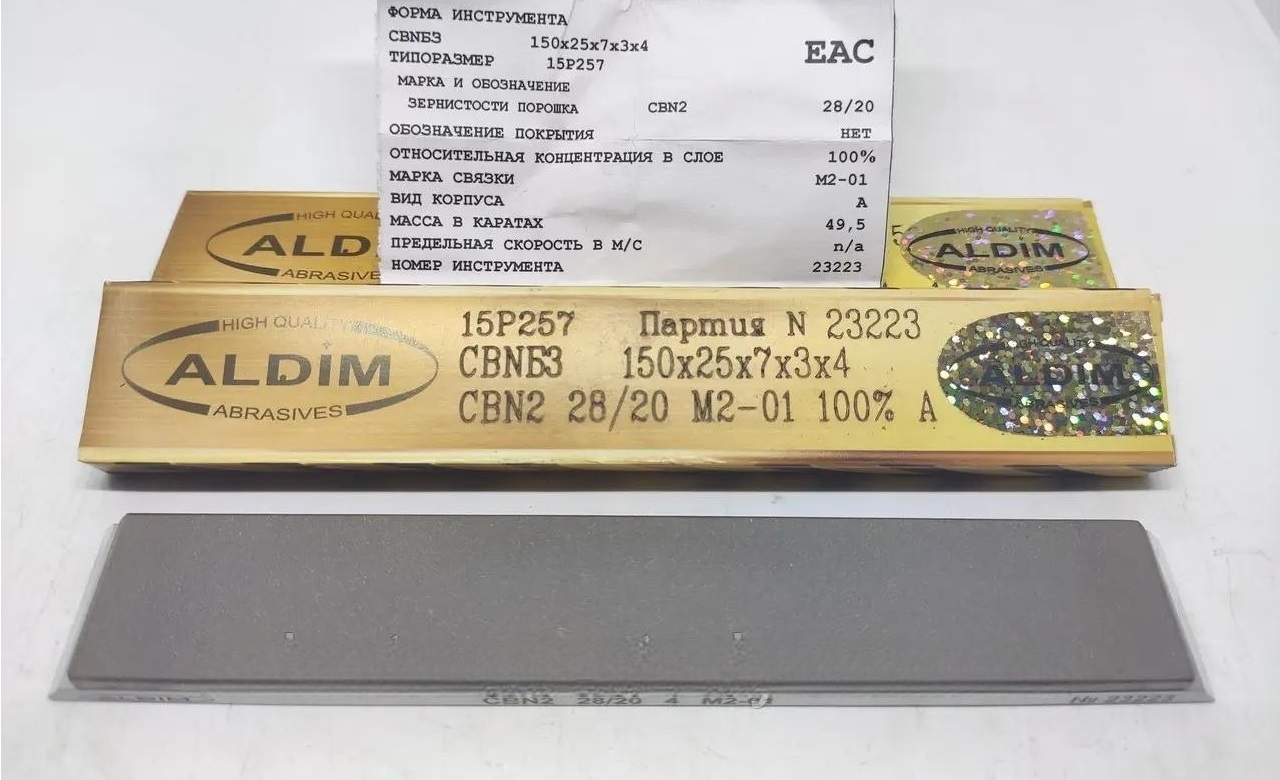

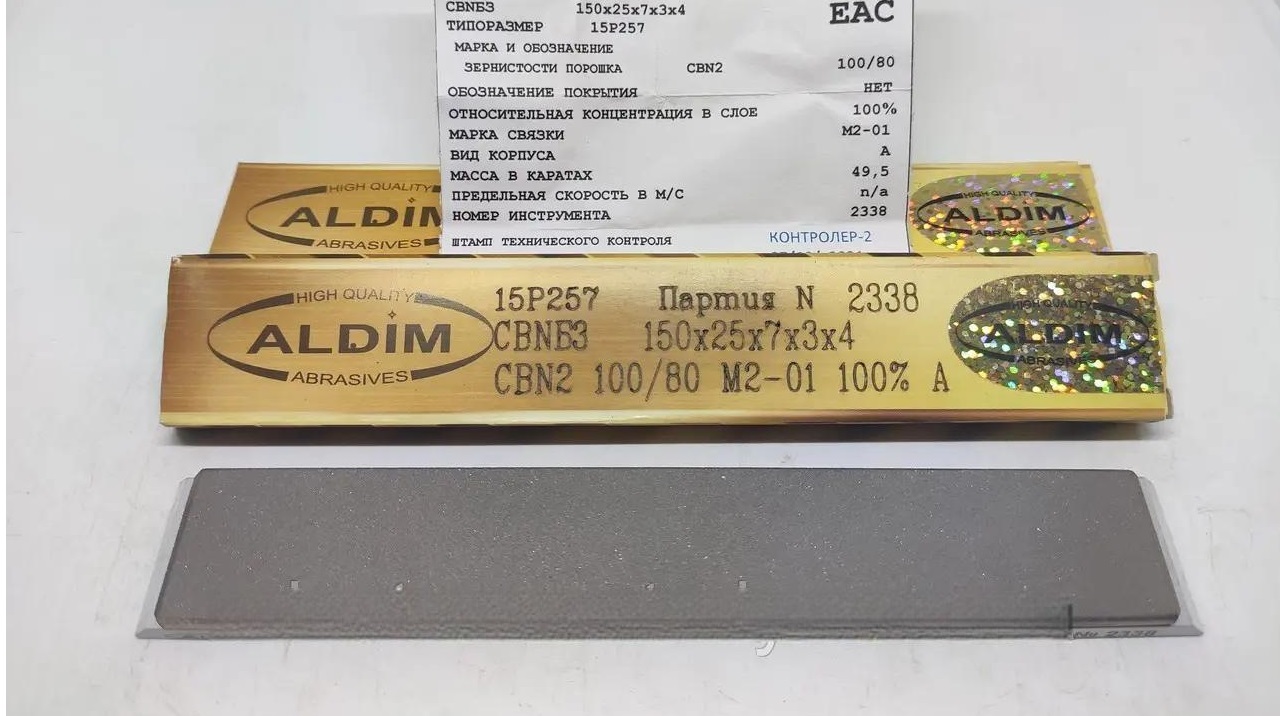

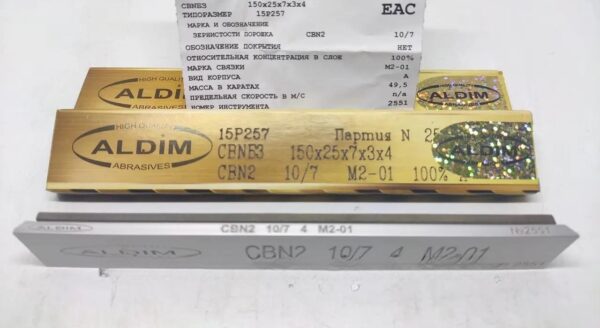

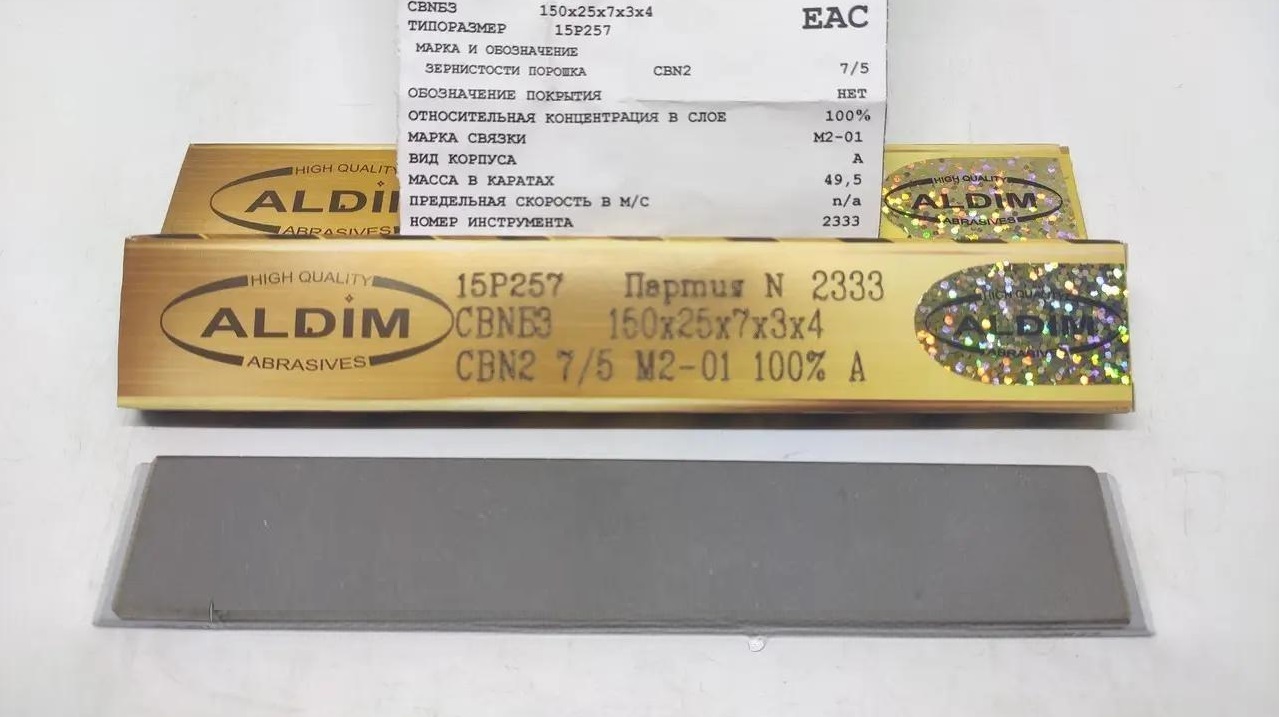

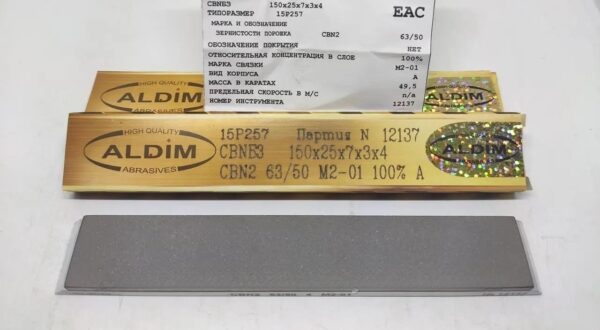

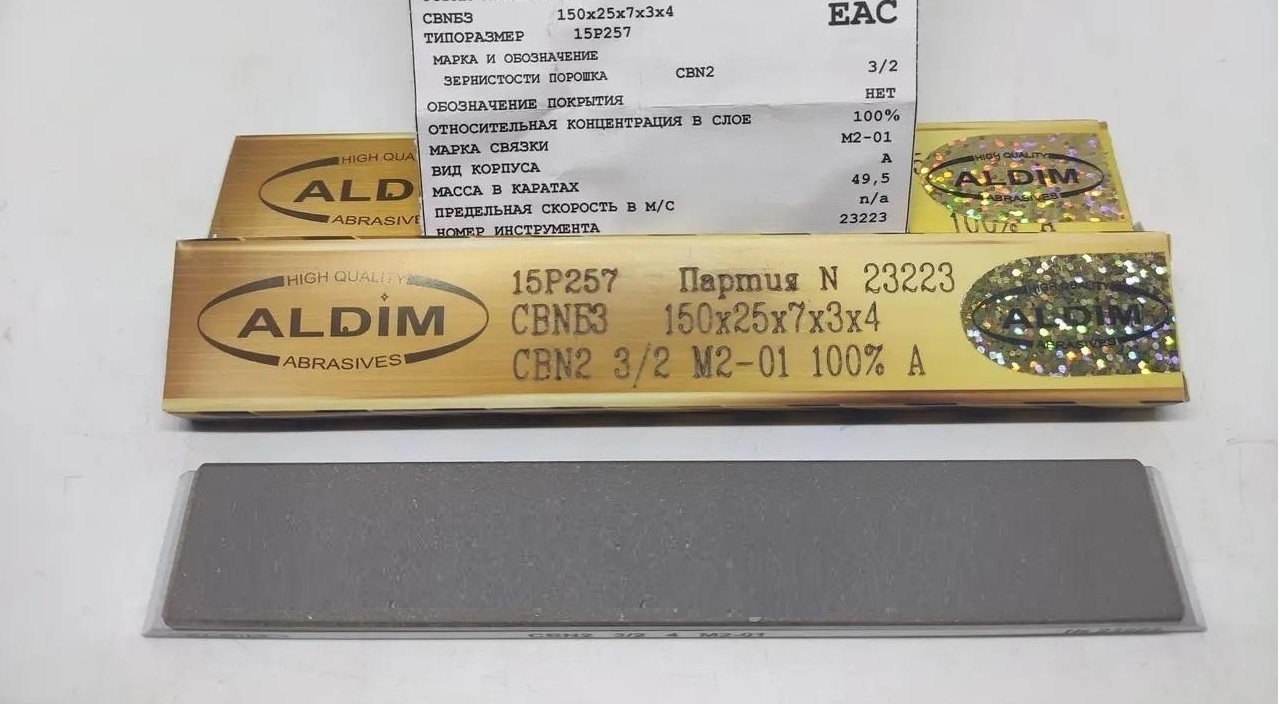

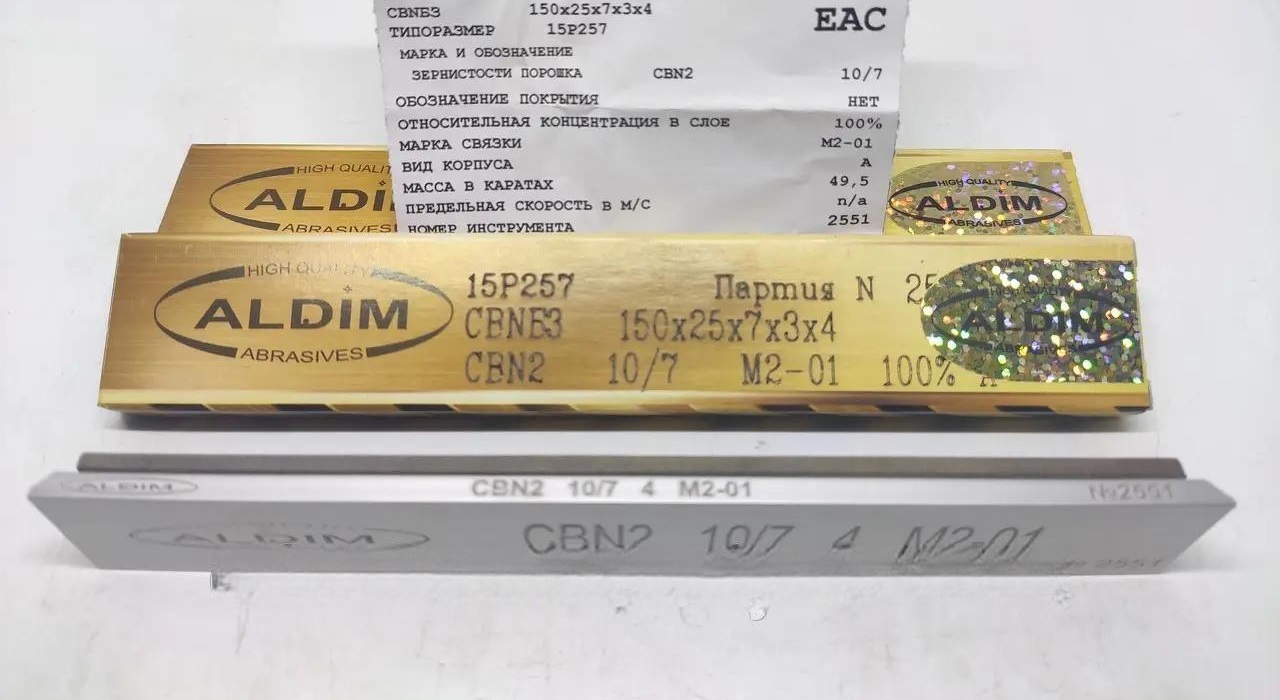

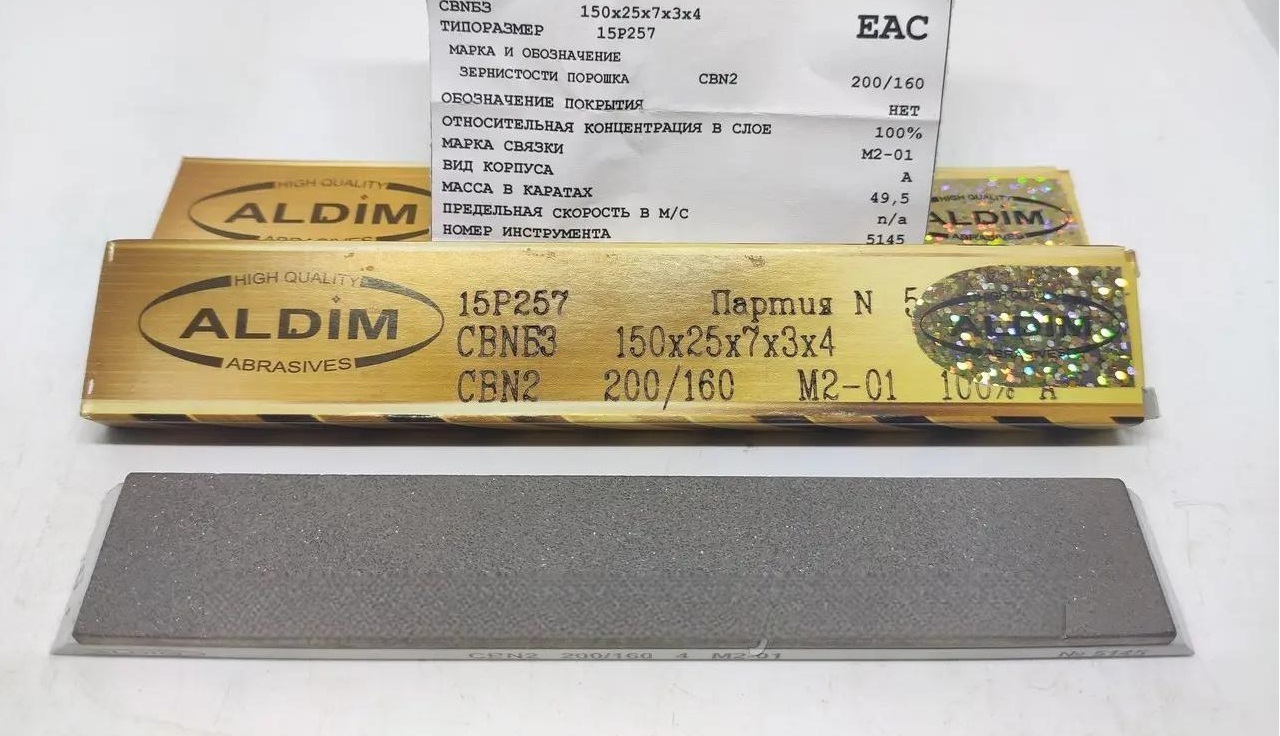

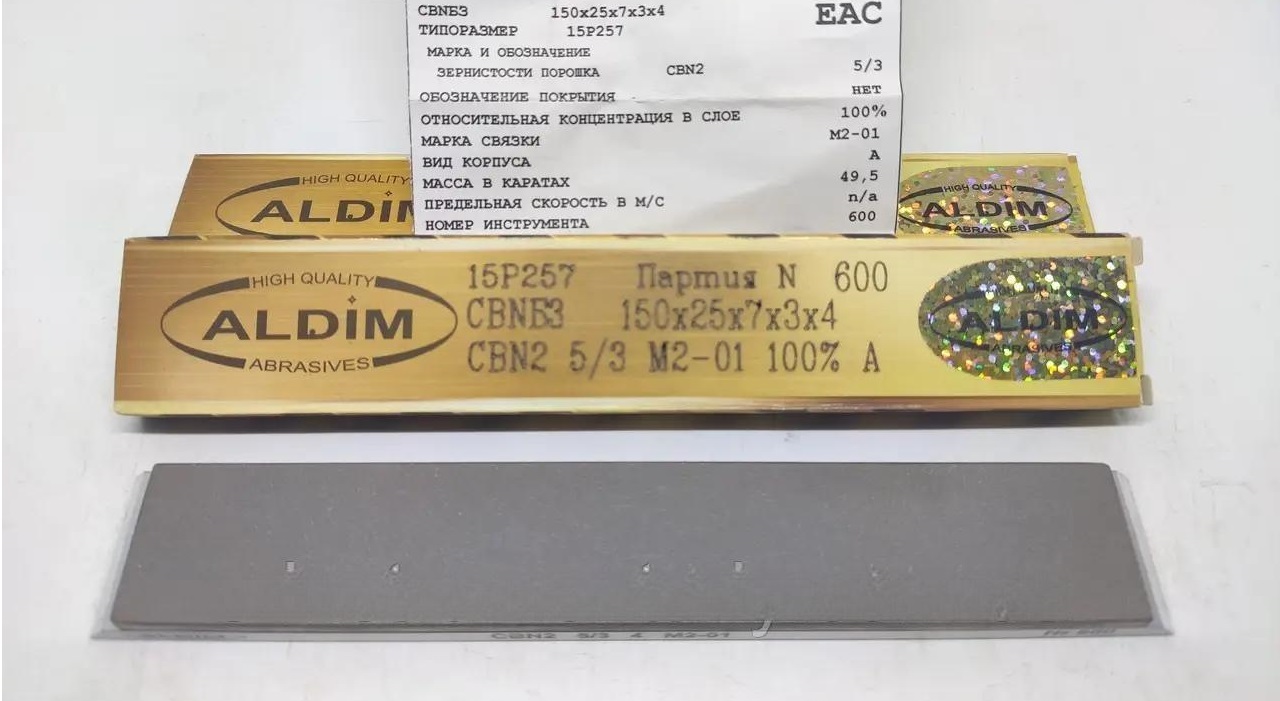

150 х 25 х 7 x 3 x 4
Trademark: Aldim. Made in Ukraine by Poltava plant of diamond tools
Length: 150 mm = 6 inch
Width: 25 mm x = 1 inch
Total thickness: 7 mm = 0.28 inch
CBN thickness: 3 mm = 0.12 inch
Blank thickness: 4 mm = 0.16 inch
Compatible with Apex Edge Pro, RUIXIN, TSPROF, Hapstone, etc.
Recommendations on selection of sharpening stones
How to maintain sharpening stones
Metal bond M2-01, may require lubricant.
Flat solid block on aluminum blank, abrasive grains are distributed evenly across the stone.
Grain size: Please select from the list, or read Technical information.
In grain selection window you see grain sizes according to standards:
MESH(GRIT)=MICRON
Do not waste your money on cheaper stones with lower/unknown concentration.
Flat solid block on aluminum blank, abrasive grains are evenly distributed across the volume of the stone.
Preparation of sharpening stones
Unlike other sharpening stones, most of these metal bond sharpening stones do not need preparation, except stones with grits finer 3 microns. You may need to dress them with abrasive powders/pastes, or they will be self-polished after sharpening of 30-50 knives.
Selection of SiC powders for dressing of sharpening stones
| Stone | Starting grit | Finishing grit |
| 500/400 μ = 35/40= D501 | F16 (1230 μ) | F24 (745 μ) |
| 400/315 μ = 40/45= D426 | F16 (1230 μ) | F46 (370 μ) |
| 315/250 μ = 50/60= D301 | F24 (745 μ) | F46 (370 μ) |
| 250/200 μ = 60/70= D251 | F24 (745 μ) | F60 (260 μ) |
| 200/160 μ = 70/80= D213 | F36 (525 μ) | F60 (260 μ) |
| 160/125 μ = 100/120= D151 | F46 (370 μ) | F80 (180 μ) |
| 125/100 μ = 120/140= D126 | F60 (260 μ) | F100 (129 μ) |
| 100/80 μ = 140/170= D107 | F60 (260 μ) | F120 (109 μ) |
| 80/63 μ = 170/200= D91 | F80 (180 μ) | F150 (82 μ) |
| 63/50 μ = 230/270= D64 | F100 (129 μ) | F180 (69 μ) |
| 50/40 μ = 270/325= D54 | F120 (109 μ) | F220 (58 μ) |
| 40/28 μ = 550= M40 | F150 (82 μ) | F240 (46 μ) |
| 28/20 μ = 650= M25 | F180 (69 μ) | F320 (30 μ) |
| 20/14 μ = 1100= M20 | F240 (46 μ) | F400 (18 μ) |
| 14/10 μ = 1500= M16 | F320 (30 μ) | F400 (18 μ) |
| 10/7 μ = 1700= M10 | F400 (18 μ) | F600 (10 μ) |
| 7/5 μ = 3000= M6.3 | F600 (10 μ) | F800 (6,7 μ) |
| 5/3 μ = 4000= M4 | F600 (10 μ) | F800 (6,7 μ) |
| 3/2 μ = 6000= M1.5 | F800 (6,7 μ) | F1200 (3 μ) |
| 2/1 μ = 10000 | F800 (6,7 μ) | F1200 (3 μ) |
| 1/0 μ | F800 (6,7 μ) | F1200 (3 μ) |
| 0.5/0 μ | F800 (6,7 μ) | F1200 (3 μ) |
Use and cleaning of CBN sharpening stones
Use any comfortable oil (baby, olive..) to prevent glazing. If glazed – clean with alcohol and toothbrush.
Maintenance (in 1-2 years), flattening/revitalization – with silicon (silica) carbide powders on glass plate, grain size selection – according to the table above.
Grain size/operation reference chart
30000 grit = 0.5/0 μ – fine polishing
15000 grit = 1/0 μ – fine polishing
10000 grit = 2/1 μ – fine polishing
5000 grit = 3/2 μ – fine polishing
4000 grit = 5/3 μ – polishing
3000 grit = 7/5 μ – polishing
1700 grit = 10/7 μ – polishing
1500 grit = 14/10 μ – polishing
1100 grit = 20/14 μ – polishing
650 grit = 28/20 μ – polishing
550 grit = 40/28 μ – fine grinding
325 grit = 50/40 μ – fine grinding
285 grit = 63/50 μ – fine grinding
240 grit = 80/63 μ – fine grinding
225 grit = 100/80 μ – fine grinding
160 grit = 125/100 μ – grinding
100 grit = 160/125 μ – grinding
80 grit = 200/165 μ – sharpening / rough grinding
Knife sharpening with CBN combined bond stones
